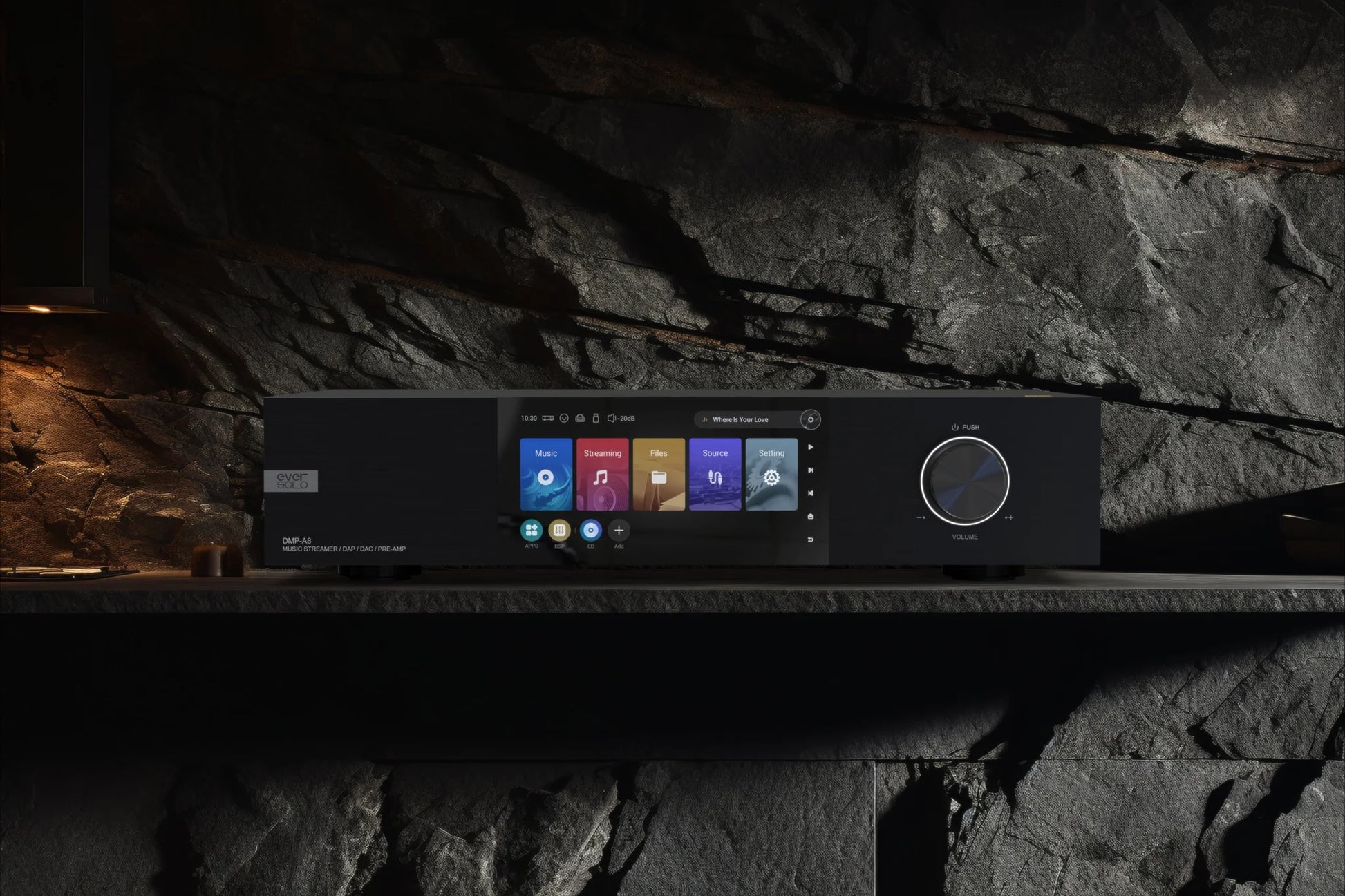

Display 6" LCD touchscreen
Internal Memory 4GDDR4 +64GeMMC

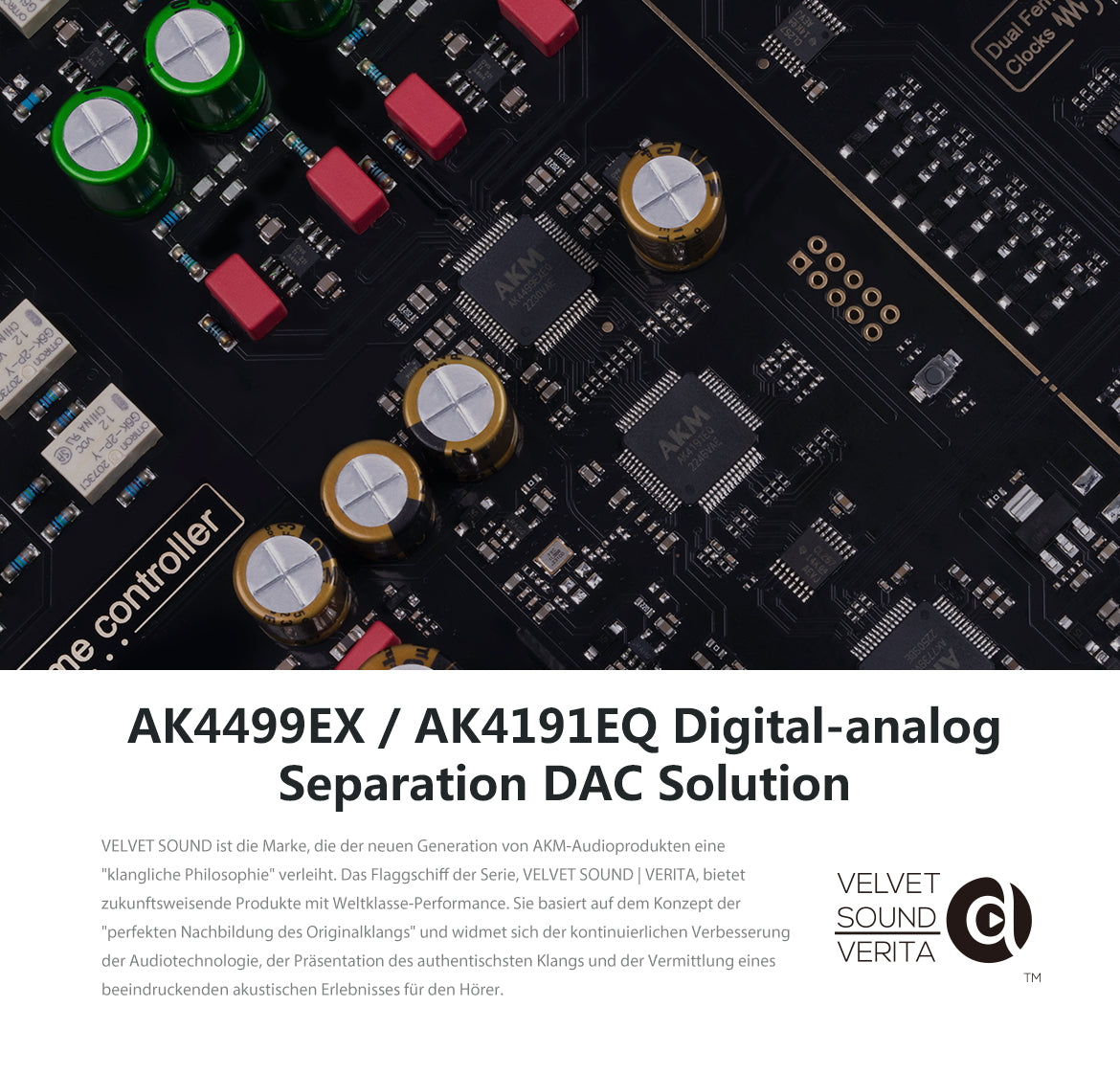

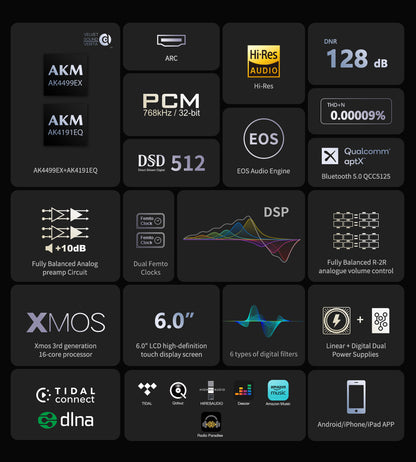

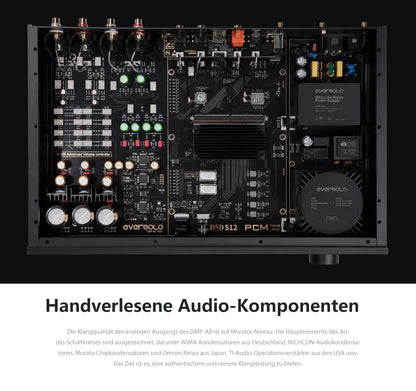

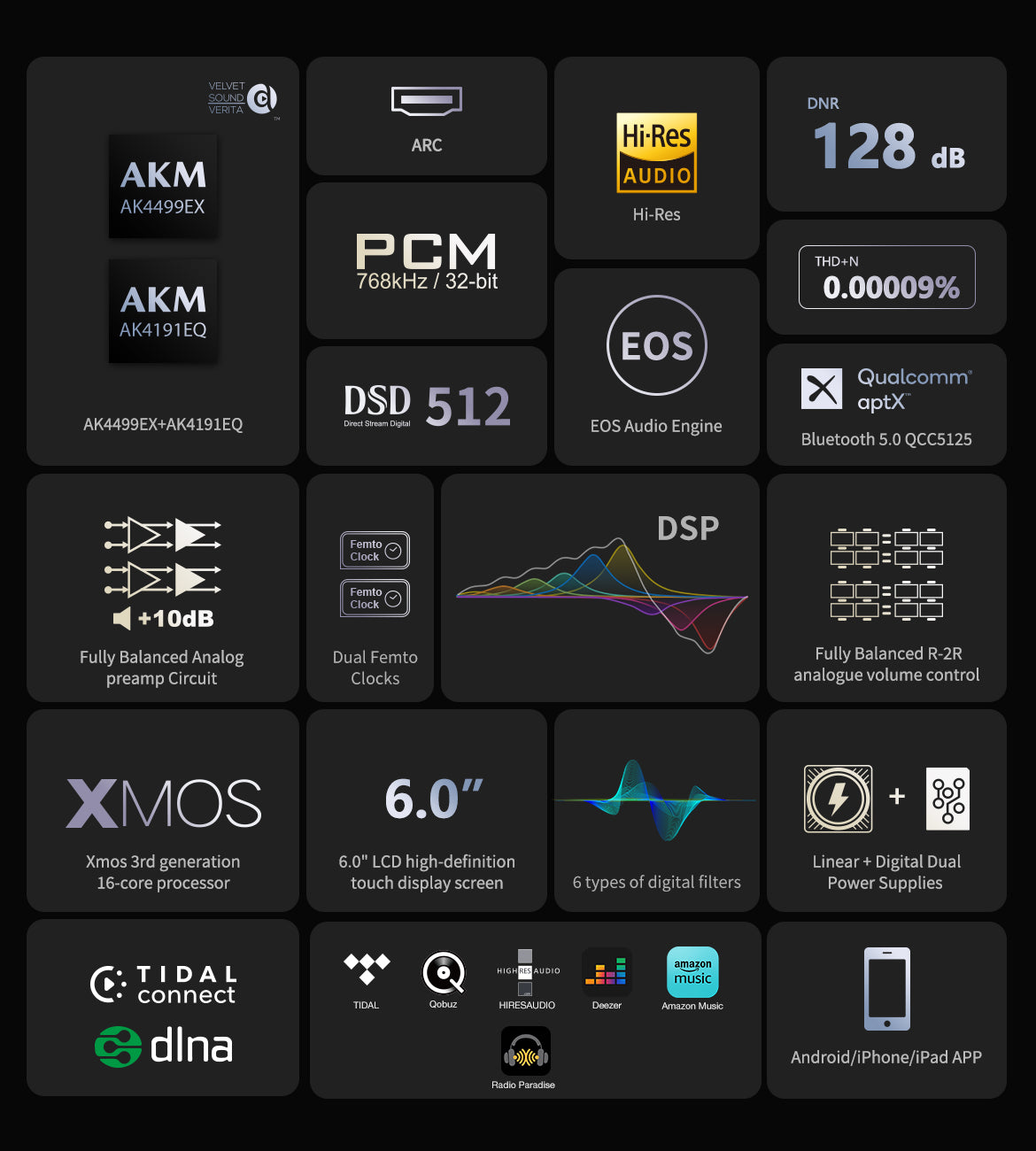

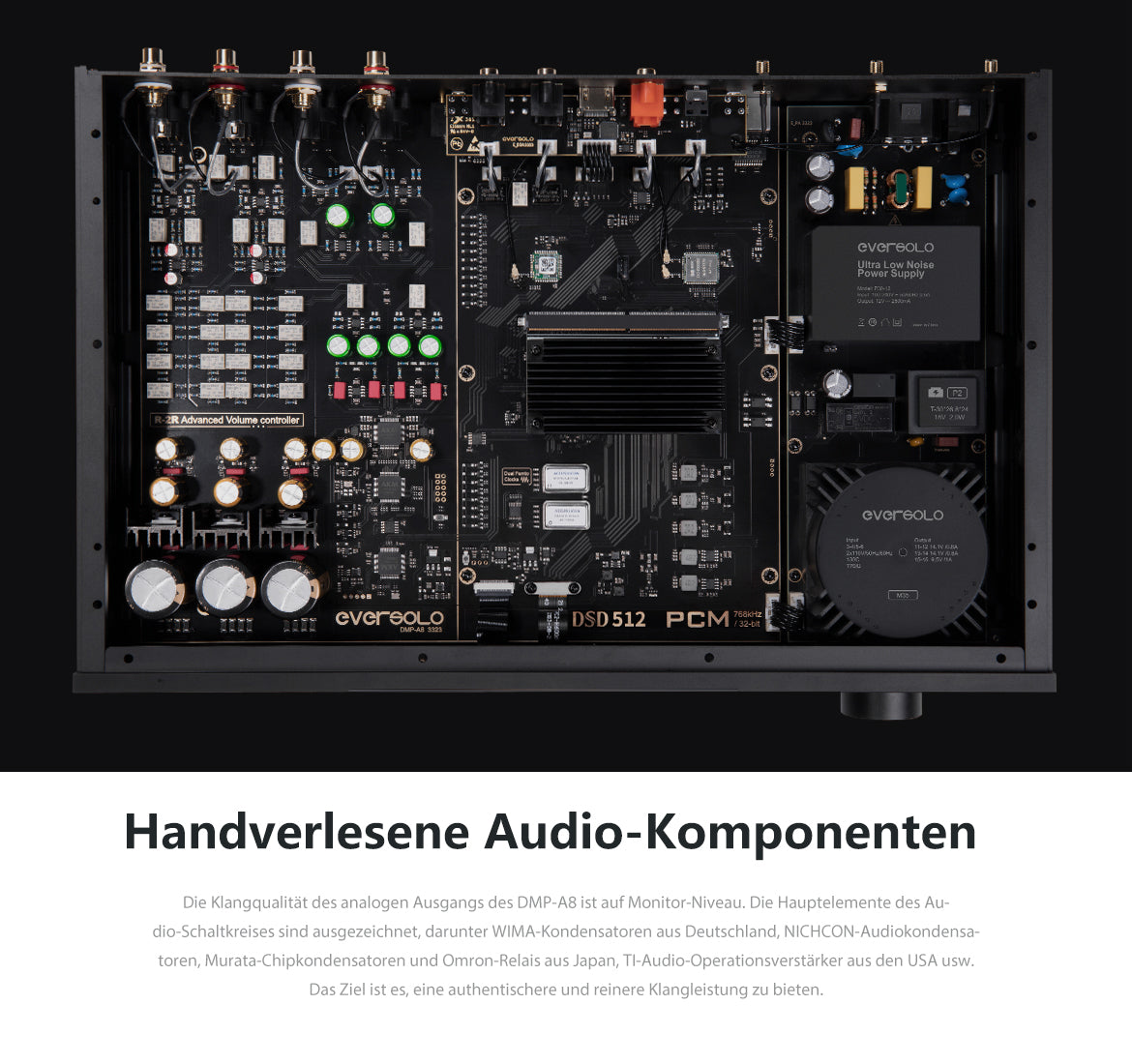

DAC AK4191EQ+AK4499EX
Audio Processor USB XU316
Op-amp Chip OPA1612

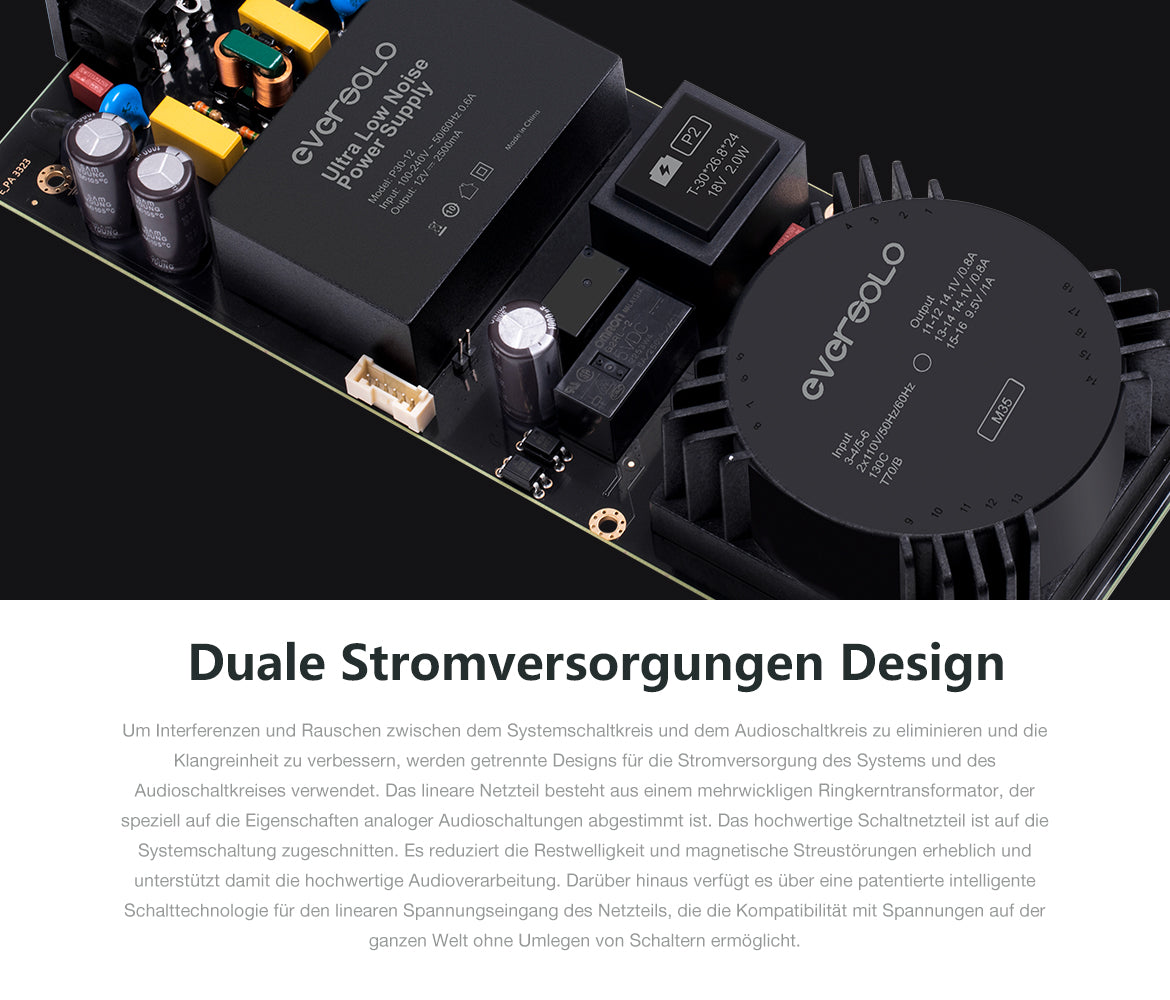

Power Supply High-quality, low-noise linear + digital dual power supply
SSD Support M.2 NVME 3.0 2280 protocol, up to 4TB (SSD isn't included).

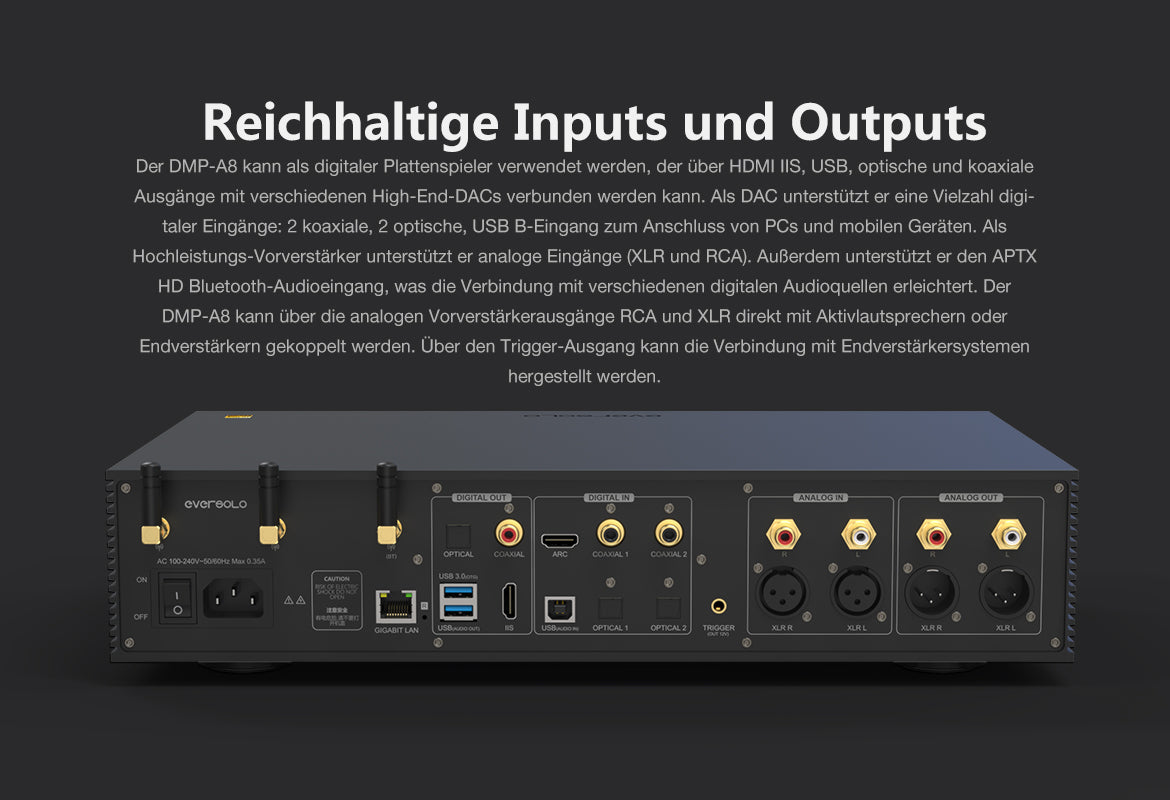

USB-A Port USB3.0*2
Ethernet RJ-45(10/100/1000Mbps)
WiFi WiFi 2.4G+5G dual band
Playback and DAC Decoding Support up to stereo DSD512, PCM 768KHz 32Bit
Music Service Tidal, Qobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, WebDAV, UPnP
Streaming Roon Ready,Air Play, DLNA, Tidal Connect etc.
Bluetooth Audio Input BLuetooth BT5.0, support SBC/AAC
USB-B Audio Input Supports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit.
Optical/Coaxial Audio Input Support up to stereo PCM 192KHz 24Bit, Dop64
HDMI ARC Support up to stereo PCM 192KHz 24Bit

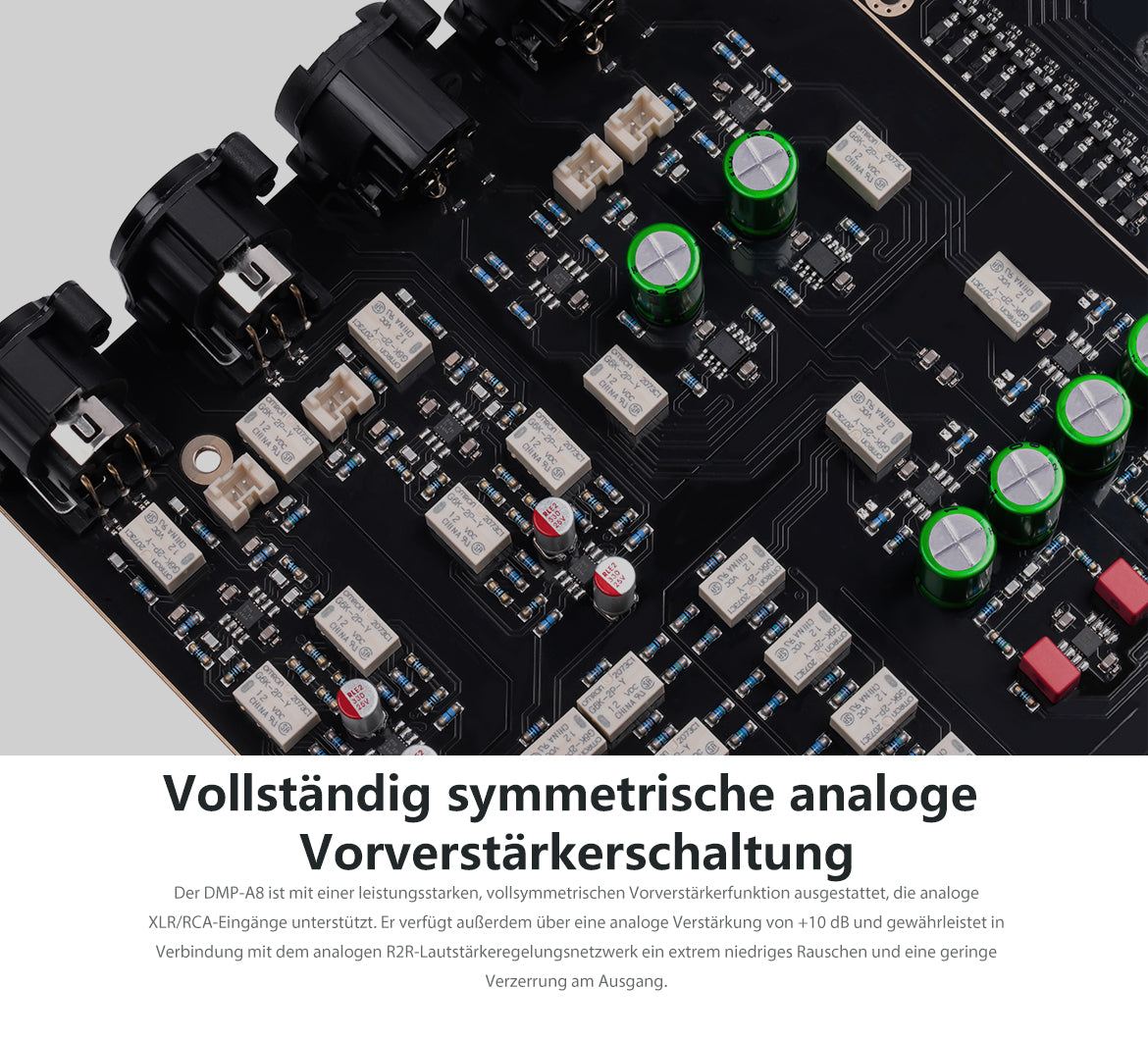

Analog preamp audio input XLR(Balanced)*1+RCA(Unbalanced), Maximum Gain +10dB
USB Audio Output Support up to stereo DSD512，PCM 768KHz 32Bit
IIS Output Support up to stereo DSD512, PCM 768KHz 32Bit
Optical/Coaxial Audio Output Support up to stereo PCM 192KHz 24Bit, Dop64
Analog Audio Output Preamp Audio Output:XLR(Balanced)+RCA(UnBalanced)
XLR Output Audio Characteristics Output level: 4.2V
Frequency response: 20Hz~20KHz(±0. 25dB)
Dynamic range: > 128dB
SNR: >128dB
THD+N: <0.00009%(-120dB) @No-wt
Crosstalk: >-121dB
RCA Output Audio Characteristics Output level: 2.1V
Frequency response: 20Hz~20KHz (±0. 25dB)
Dynamic range: > 125dB
SNR: >125dB
THD+N: <0.00010%(-119dB)@A-WT
Crosstalk: >-121dB
Control Method Mobile App，Touch screen control，IR+Bluetooth remote control
PSU AC 110~240V 50/60Hz Max 0.35A
Rated Power 16W

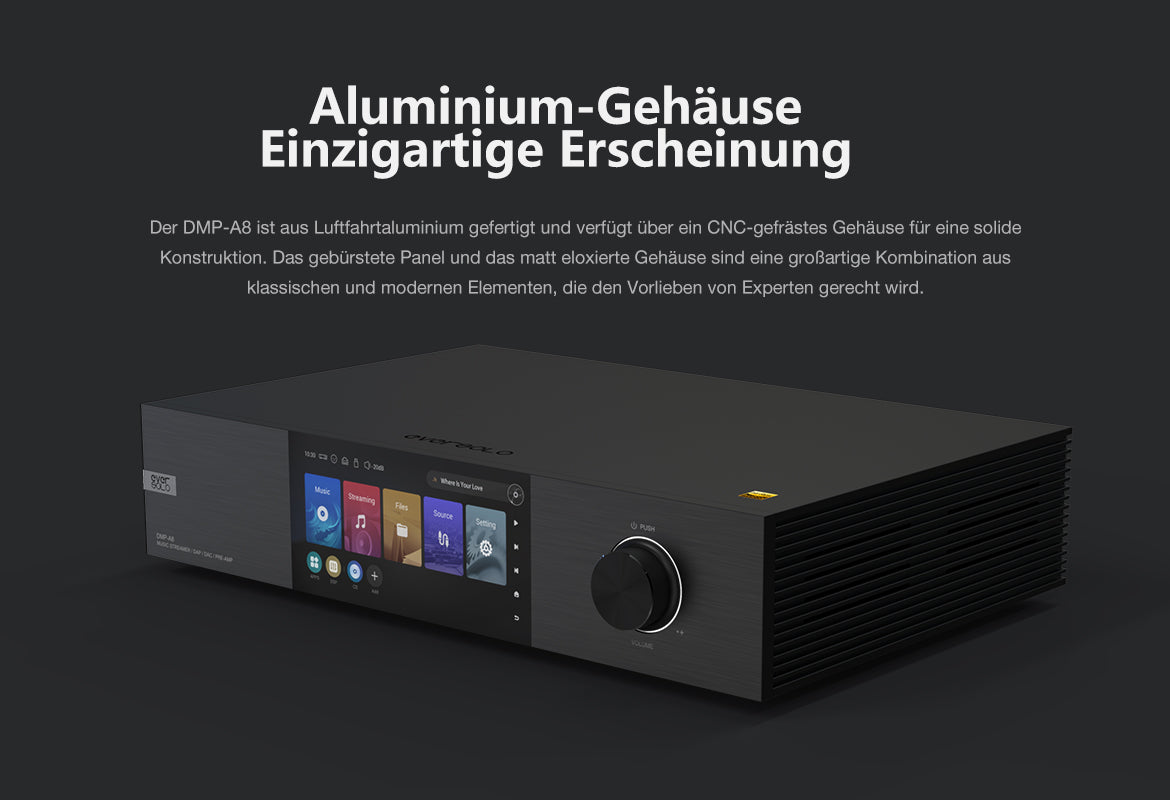

Dimensions W 388mm*L 248mm* H 90mm
Packing List Power cable*1, Remote Control*1，Screwdriver*1，user manual*1
